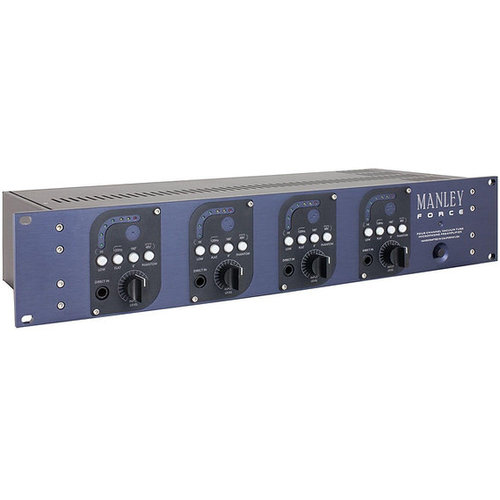

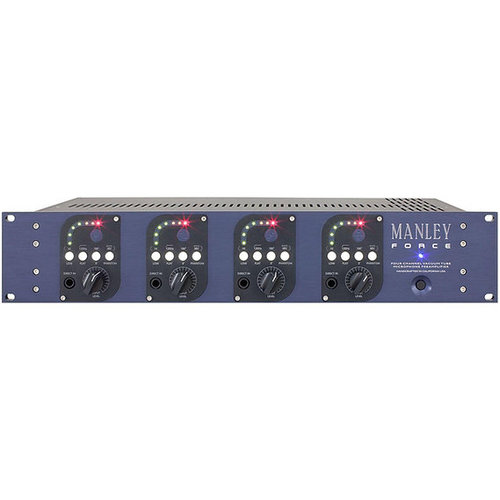

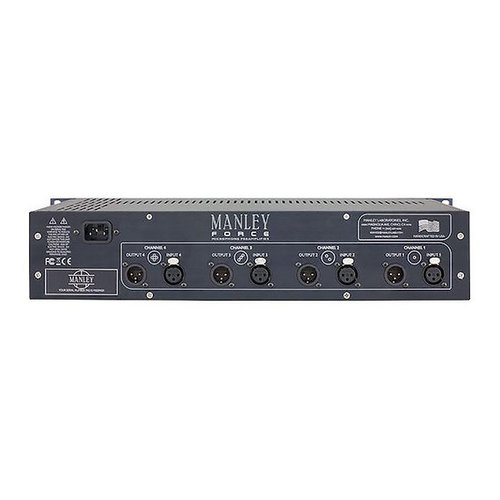

Manley FORCE PreAmp BAE

אחריות: 12 חודשי אחריות יבואן רשמי
זמן אספקה: 7 ימי עסקים
למה לקוחות קונים אצלנו:
  • אחריות: 12 חודשי אחריות יבואן רשמי
  • קניה מאובטחת ושירות לקוחות מעולה
12 חודשי אחריות יבואן רשמי חודשי אחריות
קניה בטוחה
שאל אותנו על מוצר זה

מידע נוסף

Manley Labs Force 4-Channel Microphone Preamp High Voltage = High Headroom 12AX7 dual triode amplifying stage Pure Class A MANLEY IRON Mic input transformer Line level or instrument level via front panel 1/4" Hi-Z Phase Reverse and 120 Hz High Pass filters Gold-plated XLR connectors on Mic Inputs Seven-way LED metering for each channel Instant visible feedback for audio levels GAIN for each channel can be selected as 40 dB or 50 dB Additional 10 dB of gain available via internal jumpers Innovative PowerSupply design specifically for High Voltage audio vacuum tubes 300 Volt DC rails to run the vacuum tubes High Voltage = High Headroom

מאפיינים עיקריים

Vacuum Tubes: 4 × 12AX7WA dual triodes
Balanced Transformer Coupled XLR Microphone Input Impedance: 1250 Ohms
Unbalanced 1/4" Direct Input Impedance: 10 Meg Ohm
Maximum Input Mic input (Low Gain Setting): -5 dBu or 435mV RMS @ 0.5% THD
Maximum Input Mic input (High Gain Setting): -25 dBu or 44mV RMS @ 0.5% THD
Maximum Input Direct input (Low Gain Setting): 24 dBu or 12V RMS @ 0.5% THD
Maximum Input Direct input (High Gain Setting): +17 dBu or 5.5V RMS @ 0.5% THD
Maximum Output (1kHz Sine, into 100 kOhm load, 0.1% THDN: 35 dBu
Maximum Output (1kHz Sine, into 100 kOhm load, 0.1% THDN: 43V RMS
Maximum Output (1kHz Sine, into 600 Ohms load, 0.1% THD+N): +22 dBm
Hi-current WFDRIVE Balanced Output Impedance: 50 Ohms
Output Headroom (referenced to +4 dBu): 31 dB
Dynamic Range: 118 dB @ LOW GAIN, 100 dB @ HI GAIN
THD & Noise (1Khz @ +4dBu BW 22Hz-22KHz): 0.004% at Low Gain setting
THD & Noise (1Khz @ +4dBu BW 22Hz-22KHz): 0.04% at Hi Gain setting
Noise Floor Micpre (A WGT): – 85dB @ LOW GAIN, -66dB @ HI GAIN
Signal to Noise Ratio (Ref. to +4dBu): 87dB @ LOW GAIN, 68dB @ HI GAIN
EIN (22-22kHz BW, A WGT): -129dB with 150 Ohm source impedance @ LO GAIN
Frequency Response: 20 Hz to 20 kHz -0.1dB, +0.3 dB
Gain via Microphone Input: 40 LOW or 50dB HI GAIN (60dB available via internal jumper)
Gain via Line Input: 20 or 30dB (40dB available via internal jumper)
Low Signal Green LED (Output Level): -22 dBu
High Signal Red LED (Output Level): +24 dBu
AUTOMUTE warmup delay: 30 seconds
Power consumption: 36 Watts
Operating mains voltage: 90 to 254 VAC (internal universal supply)
Mains Voltage Frequency: 50~60Hz
Dimensions: 19″ × 3 1/2″ × 7″ (occupies 2u)
Unit weight: 8.6 lbs.
Shipping weight: 11.8 lbs.
