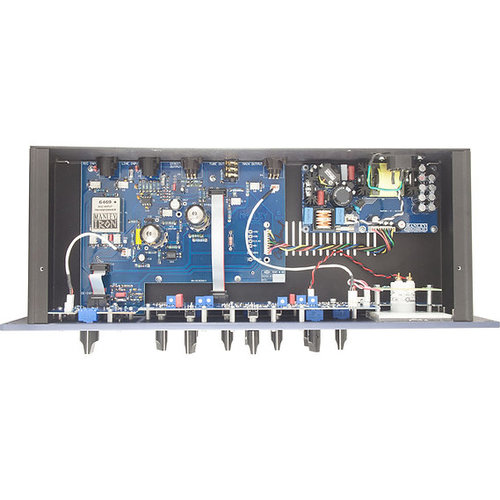

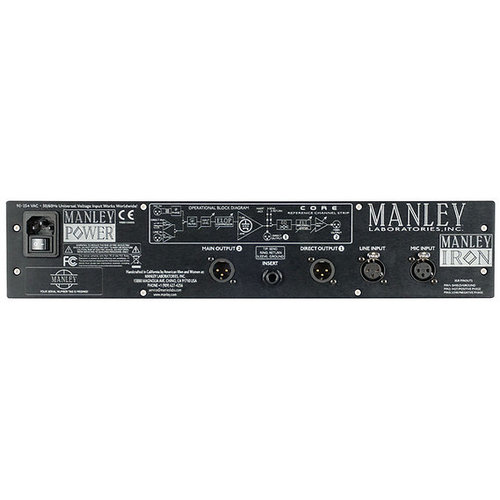

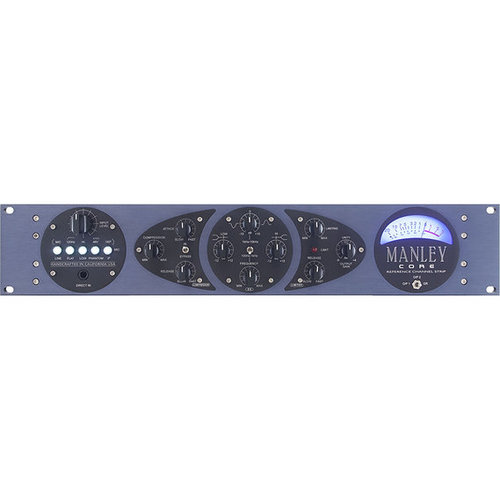

Manley CORE Reference Tube Channel

ערוץ הקלטה מנורות קלאס A עם פרה אמפ מנורות, DI, קומפרסור, איקיו, לימיטר, ושעון VU בחזית
אחריות: 12 חודשי אחריות יבואן רשמי
זמן אספקה: 7 ימי עסקים (ניתן לאיסוף עצמי ואספקה מהירה)
למה לקוחות קונים אצלנו:
  • אחריות: 12 חודשי אחריות יבואן רשמי
  • קניה מאובטחת ושירות לקוחות מעולה
12 חודשי אחריות יבואן רשמי חודשי אחריות
קניה בטוחה
שאל אותנו על מוצר זה

מידע נוסף

Manley Core - innovative channel strip ALL-TUBE preamplifier audio path using 1 x 12AX7 for gain and 1 x 6922 White Follower Balanced Transformer Coupled XLR Microphone Input Impedance: 1200 Ohms Balanced XLR Line Input Impedance: 10 kOhms Unbalanced 1/4" Direct Input Impedance: 10 Meg Ohm Hi-current drive Direct XLR output Impedance: 50 Ohms Silent conductive plastic INPUT attenuator Microphone preamp high pass filter starting at 120Hz with a 6dB/8va slope Compressor Maximum GAIN REDUCTION: 16 dB Compressor ATTACK time: 60ms slowest CCW, 30ms at 12:00, 5ms fastest CW for 6dB compression Compressor RELEASE time: 1.5s slowest CCW, 1s at 12:00, 100ms fastest CW from 6dB compression Combines Manley’s Greatest Hits Intuitive front panel Ease of use and intelligently layed out MANLEY IRON input transformer with nickel laminations Mu-metal can Class A tube circuit topology found in the VOXBOX Huge headroom 48V Phantom power switch 120Hz High Pass Filter switch Phase Invert switch Input Attenuator (Variable Pad) Mic Pre Selectable Gain 40dB or 60dB Line Amp Selectable Gain 20dB or 40dB Similar to the DI in the Manley SLAM!®

מאפיינים עיקריים

Maximum Input Mic input (Low Gain Setting): -5 dBu or 435mV RMS @ 0.5% THD
Maximum Input Mic input (High Gain Setting): -25 dBu or 44 mV RMS @ 0.5% THD
Maximum Input Line input (Low Gain Setting): +13 dBu or 3.5V RMS @ 0.5% THD
Maximum Input Line input (High Gain Setting): -8 dBu or 300mV RMS @ 0.5% THD
Maximum Input Direct input (Low Gain Setting): +24 dBu or 12V RMS @ 0.5% THD
Maximum Input Direct input (High Gain Setting): +17 dBu or 5.5V RMS @ 0.5% THD
Maximum Input Insert return: +20 dBu or 7.8V RMS @ 0.5% THD
Maximum Preamp Output (Insert Send): +35 dBu or 43V RMS @ 0.5% THD
Maximum Preamp Output (Insert Send): +22 dBu into 600 Ohms
Maximum Main Output: +20 dBu
Insert Send output impedance: 50 Ohms
Insert Return input impedance: 13 kOhms
Main Output Impedance: 50 Ohms
Direct Output Headroom (referenced to +4 dBv): 31 dB
Main Output Headroom (referenced to +4 dBv): 16 dB
Dynamic Range: >90 dB
Frequency Response: 10 Hz to 20 kHz ±0.5 dB

Large LED illuminated VU METER
Meters switch to read Direct Output (1) from preamp, Output (2) from Main Out, or Compressor Gain Reduction
THD & Noise (1kHz @ +4 dBm): 0.02% at Low Gain setting
Noise Floor (Gain set to minimum): -70 dB wideband typical
Gain via Microphone Input: 40 or 60 dB
Gain via Line Input: 20 or 40dB
Maximum Gain of EQ & Limiter section: 10 dB
AUTOMUTE warmup delay: 30 Secon
Power consumption: 35 watts
Operating mains voltage: 90 to 254 VAC (internal universal supply)
Mains Voltage Frequency: 50-60Hz
Dimensions: 19″ × 3 1/2″ × 7″ (occupies 2u)
Unit Weight: 8.3 lbs.
Shipping weight: 11.5 lbs.
